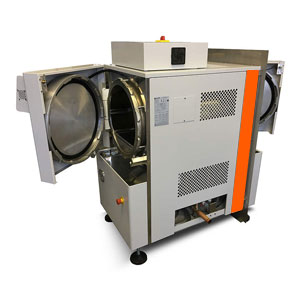

Double Door Autoclave

Rectangular and Cylindrical Pass Through Autoclaves

Labtronixed Inc is leading manufacturer of double door autoclaves in India.  Autoclaves in different sizes to meet diverse needs of our clients. An autoclave with two doors attached between two rooms. In these autoclaves, a worker on one side places the samples inside the chamber and starts the sterilization process. When the sterilization is finished, a buzzer sounds, and the worker on the other side opens the door and takes the sterilized samples out of the chamber. These sterilizers, often referred to as pass through autoclaves, are specifically employed in cleanroom environments and other settings where contamination applications are essential.

Our experience in creating pass-through autoclaves for contaminated laboratories is well-established. Labtronixed Inc™ Horizontal wall-mounted sterilizers with doors on both sides are called double door autoclaves. Depending on the needs, these autoclaves can be built in a cylindrical or rectangular shape. Additional features found in horizontal autoclaves include a printer, digital temperature controller, buzzer, and so forth. These are high-quality, reasonably priced, custom computers with exceptional performance. These units are the best alternative available in the present Indian market thanks to the availability of several options and fittings.

Standard Construction Double Door Autoclave

• A recessed jacket surrounding the chamber of the Triple Wall structure prevents steam condensation and distributes steam evenly.
• As per international requirements, the Chamber is composed of chemically resistant stainless steel 304 / 316 Grade. The argon welded chamber features two stainless steel guided rails for effortless trolley movement and a mirror-shine surface without any cleaning dead angles.
• The aluminosilicate 85 mm layers make the chamber insulated and avoid temperature loss from the chamber. This insulation layer is covered by a stainless steel sheet 304 / 316 grade to make the autoclave as per ISO quality certificate standard.
• A double door autoclave features two doors .which are interlock under pressure. The front door and the rear door.
• Doors have a radial locking system with a joint less heat-proof inflatable silicone gasket.
• The sterilization cycle will start when the Door is completely closed and locked.

The emergency stop button on Labtronixed Inc. autoclaves is for user safety in an emergency. When the emergency button is pressed, the steam sterilizer will immediately cease moving physically and open all of its valves, releasing the steam from the chamber.

Controller function system

• PLC + HMI control micro-data printing for autoclave sterilization cycle provides stable and dependable regulating.
• The sterilization cycle status, running time, running temperature and pressure of the jacket and chamber, operation record, printing, high/low temperature alarm, door opening alarm, and other procedures are all displayed on the controller interface.
• An animated display, trouble-free operation, and data storage capacity characterize a password-protected HMI.
• We have the option of manual and automatic operation with the touchscreen control device.
• For record-keeping purposes, the printer prints a temperature and pressure graph in real time along with the temperature, time, and pressure values. The user records all of these graph papers on a daily basis in accordance with international criteria.

If you are looking to Double Door Autoclave for your laboratory purpose, please provide us your specifications, your application details and choice of accessories you want in your autoclave. Our technical person will contact to you, discuss your requirements and prepare a budgetary offer.

FEATURES & BENEFITS

• Cylindrical / Rectangular design
• Stainless steel interior and exterior
• ISI marked flange / immersion heating elements
• Working pressure 15 psi to 20 psi
• Standard temperature 121°C
• Silicon rubber door gasket
• Digital controller
• Automatic pressure control switch
• Reliable steam pressure gauges
• Vacuum breaker and steam trap valve
• Viewing glass water level check
• Triple walled construction
• Automatic water level cut-off
• Powder coated / chrome plated MS Stand

OPTIONAL FEATURES & ACCESSORIES

• Working at 30 psi with 134°C
• PLC with HMI interface
• Complete SS 316 construction
• Doors at both sides
• Provision for vacuum drying
• Data logger with USB interface

Technical Specification-

Double Door Autoclave Cylindrical Size-

Double Door Autoclave Cylindrical Size-
